企业介绍

佛山市恒力泰机械有限公司【科达洁能(股票代码：600499)的全资子公司，以下简称：恒力泰或公司】是专业从事液压机械装备研发制造的民营企业，源于1957年，迄今已有60年的历史，是国家高新技术企业、国家火炬计划重点高新技术企业、全国制造业单项冠军企业、中国建材机械20强企业、广东省创新型企业、广东省民营科技企业、广东省装备制造业50骨干企业、广东省战略性新兴产业(智能制造)骨干企业、中国专利奖和佛山市政府质量奖获奖企业。

公司于1988年研制成功600吨级的液压自动压砖机，荣获国家科技进步奖。恒力泰生产的陶瓷压砖机是陶瓷生产企业的核心和关键设备，整体技术处于“国内领先、国际先进”水平，荣获国家级、省(部)级多项殊荣，是全国制造业单项冠军产品、中国陶瓷行业名牌产品、中国建材机械行业名牌产品、国家重点新产品、广东省高新技术产品和广东省名牌产品，产品覆盖国内各陶瓷主产区，并远销到亚洲、非洲和美洲的30多个国家和地区，在国际上具有极高知名度。

恒力泰建有省级工程技术研究中心和省级企业技术中心，是陶瓷砖自动液压机和透水砖自动液压机行业标准的负责起草单位，也是耐火砖自动液压机行业标准的参与起草单位。公司专注压砖机研发制造三十载，目前已形成从600吨～30000吨共40多个规格型号的产品系列，具备年产各类压砖机700台的能力，具有雄厚的研发生产实力。

这些辉煌成就，是荣誉，更是动力，让我们不断向前超越。

2011年恒力泰公司开始进军耐火材料装备行业，经过技术调研充分了解了各种耐火砖的压制生产工艺，经过精心研发及制做，首先成功推出了YPR2500耐火砖自动液压机，现已成功推出了YPR3600,YPR2000，YPR1800L，YPR1600,YPR1250, YPR1300L，YPR1250G等系列耐火砖自动液压机。

2014年开始，依托丰富的液压自动压砖机设计、制造经验及雄厚的研发创新能力，公司可按照客户的工艺要求进行压制试验，根据试验的结果针对性修改压机产品参数和性能指标，为各行业客户提供成熟高效的定制化产品服务。相继推出了YPQ系列墙体砖压机，YPT透水砖砖自动液压机，YPR1300T氧化铝自动液压机，YP2080锂电材料压机, YPR4000T靶材压机等系列新产品，服务于多个行业的粉末成型工艺，后续新产品将陆续面世，让恒力泰的卓越产品服务于更多的行业。

公司遵循“追求卓越，创造第一”的经营理念，在佛山市三水工业园区兴建的集机、电、液、气于一体的大型机械装备生产基地。恒力泰目前已发展成为全球最大最专业的压砖机、布料系统和翻(接)坯机等装备研发生产基地，为践行满足客户最大需求，创造最大价值的目标提供了坚实保障。

Established in 1957, FOSHAN HENGLITAI MACHINERY CO., LTD. (hereinafter HLT，) has become a private company dedicated to the manufacturing of hydraulicmachinery. HLT is a wholly-owned subsidiary of Keda Clean Energy Co., Ltd. (IPO:600499)It is a National Hi-tech Enterprise, Key Hi-tech Enterprise of National Torch Program, National single champion enterprise of manufacturing industry ,China TOP 20 Building Materials Machinery Companies, Innovation-led Enterprise of Guangdong Province and Top 50 Key Enterprise of Guangdong Equipment Manufacturing industry and key enterprise of Guangdong Strategic New Industry (Intelligent Manufacturing).

HLT invented its first hydraulic press in China in 1988. The YP series hydraulic tile press, the technology of which is leading in domestic market and advancing in the global market, is the key and vital equipment in ceramic companies. HLT press is the Famous brand in China, National Key New Products, Guangdong Hi-tech Products, Guangdong Independently Innovative Products , products of National single champion of manufacturing industry and Guangdong Famous Products. HLT is the famous and well-known brand of ceramic press in China and overseas, the products have been exported to more than 20 countries and regions in Asia, Africa, and South America, enjoying high reputation worldwide.

As the Drafting Committee of Ceramic press and automatic water permeable brick press industrial standard, and the Participating Committee of refractory hydraulic press industrial standard, HLT has established the Guangdong engineering technology R&D center and Provincial enterprise technology center. After near 30 years of development, HLT has now developed its serial of product in over 30 models ranging from 600-30000 tons with an annual output of over 700 presses. HLT has strong R & D production strength.

ALL of these remarkable achievements are not only an honor but also motive that powers HLT to continuously take steps forward.

In 2011, HLT began to enter the refractory equipment industry. After fully understanding the production technology of various refractory bricks and elaborately researching and developing, HLT first successfully launched the YPR2500 refractory automatic hydraulic press. Till now HLT has successfully launched YPR3600, YPR2000, YPR1800L, YPR1600, YPR 1250G, YPR1300L, YPR1250G series of refractory automatic hydraulic press.

Relying on the rich ability of design automatic hydraulic press , manufacturing experience and strong R & D innovation ability, HLT can make the pressing test as per customer's technological requirements since 2014.According to the pressing test results ,HLT can provide mature and efficient customized products for customers in various industries.HLT has launched YPQ wall brick automatic hydraulic press,YPT water permeable brick press,YPR1300T alumina automatic hydraulic press, YP2080 lithium battery press ,YPR4000T target material press and other new products, to serve more industries .Following new products will be available soon.

Locating in Foshan Sanshui industrial park, which integrates machine, electricity, liquid and gas ,HLT follows the business philosophy of “A PASSION FOR PERFECTION”and has developed into the largest and most professional hydraulic press in the world, feeding system and Brick conveyor(take-off table) and other equipment R & D production base, to meet the maximum requirement of customers, create the maximum value of the goal to provide a solid guarantee.

企业展示

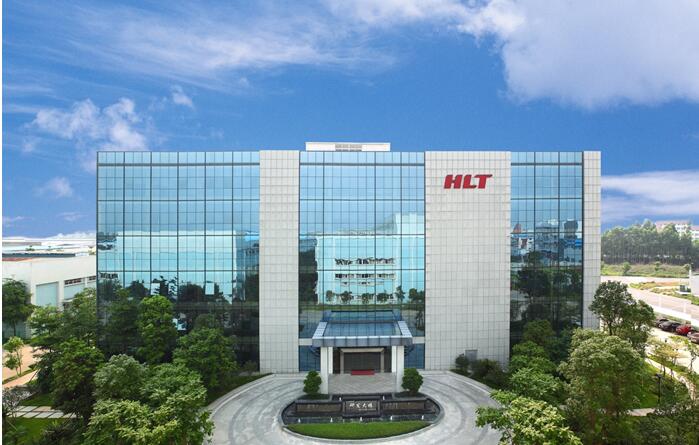

恒力泰三水总公司研发大楼(R&D Building)

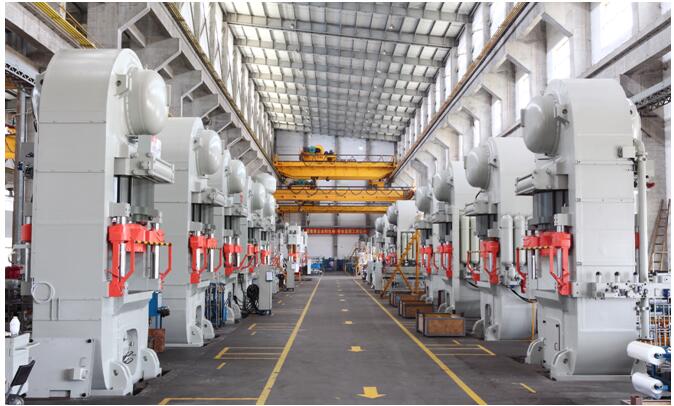

恒力泰装配车间(Assembly Workshop)

恒力泰曾获奖项(Enterprise Honor)

YPR系列耐火砖自动液压机介绍

YPR SERIES REFRACTORY HYDRAULIC PRESS

YPR系列耐火砖自动液压机是由佛山市恒力泰机械有限公司研发制造，专业用于耐火砖干法压制成型的设备，是集机、电、液、气、计算机一体化的高科技含量产品，由主体结构、液压系统、喂料系统、电气控制系统、模具装卸机等组成，能自动完成压制过程中的布料、压制、脱模、夹砖以及喷油等工作，该系列耐火砖自动液压机保持了恒力泰产品“稳定可靠、性能先进、故障率极低”的突出优势，通过采用各种关键核心技术使产品具有如下优势和特点。

YPR series refractory hydraulic press is developed by FOSHAN HENGLITAI MACHINERY CO., LTD. for producing refractory products in a dry-pressed way. The integration of mechanical, electrical, hydraulic, pneumatic and computerization into a machine, the refractory hydraulic press consists of main body, hydraulic system, feeding system, electric control system, mould loading/unloading system and so on.The filling, pressing, demould, unloading and oil spraying are fulfilled automatically throughout the cycle. Apart from the inherited features of HLT products, stability, advanced performance and low failure rate, the refractory press also enjoys the below advantages through rationalization of core technology:

-------产品的适用性广

设备的控制系统可选择性功能强大，配合相应的硬件配置可以满足各种原料特性、外形结构尺寸的产品生产需求。

Wide applicability

Thanks to the optimum hardware configuration, various settings are made possible to meet the needs for product of raw material characteristics, shapes and sizes.

-------精密的制品尺寸控制

采用高性能线性位移传感器精确测量压制油缸和活动模框位移，采用闭环的控制方式进行制品尺寸控制，自动比较调整，保证制品尺寸在最小误差范围之内，。

Accurate product size control

The displacement of pressing cylinder and mobile mould frame is monitored by high-performance linear position sensor. The product size is controlled in a close-loop way that the adjustment is performed automatically to ensure the tolerance.

-------双向压制效果

采用适合于耐火砖大填料深度的模框浮动式压制方式，通过精确的控制压制主油缸与活动模框油缸在压制过程中的速度匹配，实现双向压制的效果，使制品的上下密度均匀，制品质量高。

Dual pressing

The floating mould frame and main cylinder are controlled accurately in such a way that movement is synchronized, realizing the dual pressing for optimum density distribution.

-------精确的压力闭环控制

采用压制力闭环控制，通过压力传感器的反馈，经过PLC的数据处理可按需要实现精确的分级变速加压，多次排气成型，最大限度地减少制品的气孔率，增大制品密度。

Precise close-loop pressure control

With the help of the feedback from pressure transducer and data processed by PLC, the pressure is controlled in a close-loop manner for varied speed pressurization and multiple deaeration to minimize porosity and increase density.

-------容积式填料

容积式填料装置，配以独特的粉料解碎器和填料搅拌装置机构，以及通过比例阀技术控制料车，有效的解决粉料结团及偏析现象，保证落入模腔的粉料均匀，从而达到控制砖的重量误差在制品的要求范围之内。

Volumetric filling device

Volumetric filling device equipped with material crusher and mixer, controlled by proportional technology, makes sure that the material in distributed evenly in the mould cavity and effectively avoids clustering and liquation in order the control weight variation within the limit.

-------快速装卸模具

采用液压自动锁模和松模，并配备快速换模装置，用户可轻松快速地更换模具并自动锁紧，满足耐火砖品种规格变化快的生产特点。

Fast mould change-over

Fast mould change device is controlled by hydraulics to make it possible to change the mould and lock it automatically to meet the demand of producing refractory product with frequent mould change-over.

-------整机自动化程度高

设备集机、电、液、气及智能控制技术于一体，实现布料、成型、夹砖、出砖等工序全自动化，受人为的因素影响小，人工成本低，生产效率高。

Highly automated

Filling, forming, extracting and gripping, etc, in the manners of mechanic, electric, hydraulic and pneumatic, are all controlled by automation to reduce human error and labor cost.

-------数字化智能式控制系统

内容丰富的人性化操作界面及远程故障诊断技术。压机工作模式转换、压制力控制、砖坯厚度调整、动梁和料车速度控制等参数设定和调节均可在操作界面完成外，还设有故障错误显示、PLC输入输出接口动态模拟等，并配装了DVP通信模块，通过人机界面可以设置DVP卡的参数，方便用户进行参数调整;通过配置远程通讯装置，还可为用户建立远程通讯系统，为用户及时提供远程故障诊断服务并大大方便程序的改进升级。

Digitalized smart control system

User-friendly interface and remote diagnosis technology. The switch of working mode, pressure control, thickness adjustment, plunger/speed control, etc are performed on the HMI. The error message and PLC input/output dynamic simulation are also shown on the HMI. With a DVP module, the DVP card value can be accessed and modify easily. The remote communication device can set up a remote control system for trouble-shooting and upgrade of program conveniently.

-------设备安全环保节能

整机的安全保护措施齐全，杜绝摩擦压机因误操作而造成的人身伤害和设备损坏。压制过程平稳噪音小，输料系统及填料系统密闭性好，粉尘散发少，改善了工人的工作环境，大大减少对人身的损害，主油泵和辅泵分别采用恒功率变量泵和恒压式变量泵，发热少节约能量。

Safe and energy-saving

An overall safety system to prevent the damage to staff and machine caused by human error which is seen in friction press. The noise level is controlled effectively during the pressing stage and transport system for material is properly sealed to avoid dusting, so as to improve working environment for workers and reduce harm to health. Constant power and constant pressure variable displacement pump are used as main pump and auxiliary pump, respectively, to reduces heat dissipation and save energy.

-------设备维护成本低

采用全流量过滤、冷却液压系统，大大降低油液污染引起的系统故障率，保证油温处于最佳状态，同时整机的液压件、密封件及电器元件均采用国际顶级知名品牌的产品，使用寿命长又可靠，有效保证了压机的稳定性可靠性，又降低了维护成本。

Low maintenance cost

Full-flow filtering and heat exchanging system greatly reduce the system malfunction caused by contamination of oil. Oil temperature is maintained at an optimum level. The hydraulic units and electronics are from world-famous suppliers.
